M10 Solar Panels

With MBB design, the product structure has a more uniform crack stress distribution and higher reliability. The output power is 375w-595w, which can reduce the cost and increase the efficiency of the whole system. It is specially designed for industrial, commercial, and centralized ground power stations.

Types of the M10 Solar Panels For Sale

M10 108cells 375-390w  Full Black Solar Panel

M10 108cells 375-390w Full Black Solar Panel

M10 108cells 375-390w  Full Black Solar PanelPDF DOWNLOAD
M10 108cells 375-390w  Full Black Solar Panel

The product adopts a multi-bus design, with a more uniform crack stress distribution and higher reliability. The half-cut technology is used to reduce the heating of the module and improve safety performance. Full black aesthetic BIPV design, perfect integration of photovoltaic and building, non-destructive slicing technology, greatly improve module power and efficiency, the output power is 375-390w.

Dimension 1723×1133×35mm
Weight 21.5kg
No. of cells 108
Rated Maximum Power 390w
Maximum Efficiency 19.98%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible

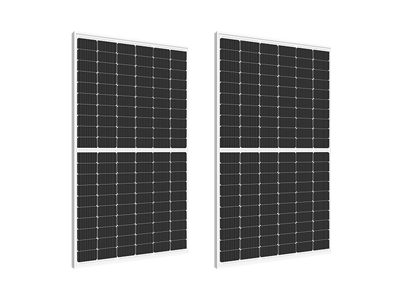

M10 120cells 435-455w solar panel

M10 120cells 435-455w solar panel

M10 120cells 435-455w solar panelPDF DOWNLOAD
M10 120cells 435-455w solar panel

Dimension 1908×1133×35mm
Weight 24kg
No. of cells 120
Rated Maximum Power 455w
Maximum Efficiency 21.05%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible
M10 108cells 395-415w  Solar Panel

M10 108cells 395-415w Solar Panel

M10 108cells 395-415w  Solar PanelPDF DOWNLOAD
M10 108cells 395-415w  Solar Panel

The product adopts the non-destructive dicing technology, greatly improves the power and efficiency of the module, the output power is 395-415w, and has the advantages of small size, light weight, high power generation, good system adaptability, etc.

Dimension 1723×1133×30mm
Weight 20kg
No. of cells 108
Rated Maximum Power 415w
Maximum Efficiency 21.26%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible

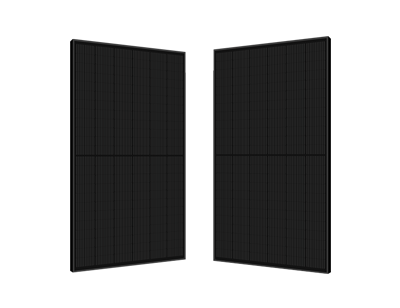

M10 144cells 515-525w black solar panel

M10 144cells 515-525w black solar panel

M10 144cells 515-525w black solar panelPDF DOWNLOAD
M10 144cells 515-525w black solar panel

Dimension 1908×1133×35mm
Weight 24kg
No. of cells 120
Rated Maximum Power 455w
Maximum Efficiency 21.05%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible
M10 144cells 535-555w  Solar Panel

M10 144cells 535-555w Solar Panel

M10 144cells 535-555w  Solar PanelPDF DOWNLOAD
M10 144cells 535-555w  Solar Panel

The product adopts multi-bus design, with more uniform crack stress distribution and higher reliability. Ultra-high power is specially designed for distributed and large power plants. With non-destructive slicing technology, the power and efficiency of modules can be greatly improved. The output power is 535-555w.

Dimension 2278×1133×35mm
Weight 28kg
No. of cells 144
Rated Maximum Power 555w
Maximum Efficiency 21.51%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible

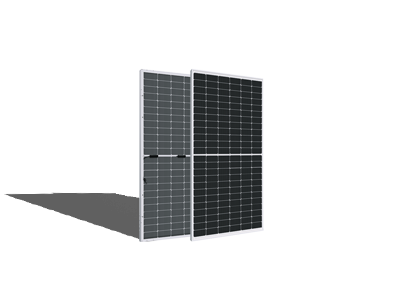

M10 144cells 530-545w  Bifacial Solar Panel

M10 144cells 530-545w Bifacial Solar Panel

M10 144cells 530-545w  Bifacial Solar PanelPDF DOWNLOAD
M10 144cells 530-545w  Bifacial Solar Panel

The product is specially designed for centralized ground power stations with different installation conditions, high adaptability and high compatibility, and mature support and inverter scheme. Double-sided power generation technology, up to 30% back sheet gain can be achieved.

Dimension 2278×1133×35mm
Weight 28kg
No. of cells 144
Rated Maximum Power 545w
Maximum Efficiency 21.12%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible
