G12 Solar Panels

The product strengthens the density of components, and the output power is 385w-670w, which greatly improves the power and efficiency of components. At the same time, it has the core advantages of small size, lightweight, high power generation, good system adaptation, convenient transportation, environmental protection, and green.

Types of the G12 Solar Panels For Sale

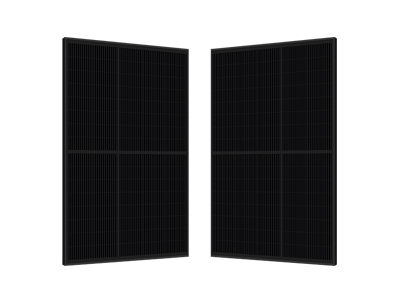

G12 80cells 370-385w black solar panel

G12 80cells 370-385w black solar panel

G12 80cells 370-385w black solar panelPDF DOWNLOAD
G12 80cells 370-385w black solar panel

Dimension 1760×1096×35mm
Weight 21.5kg
No. of cells 80
Rated Maximum Power 385w
Maximum Efficiency 19.96%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible
G12 80cells 385-405w Solar Panel

G12 80cells 385-405w Solar Panel

G12 80cells 385-405w Solar PanelPDF DOWNLOAD
G12 80cells 385-405w Solar Panel

The product can match different installation conditions, take into account high adaptability and high compatibility, non-destructive dicing technology, greatly improve the power and efficiency of the module, the output power is 385-405w, and it is suitable for household and small industrial and commercial distributed projects.

Dimension 1760×1096×35mm
Weight 21.5kg
No. of cells 80
Rated Maximum Power 405w
Maximum Efficiency 21.00%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible

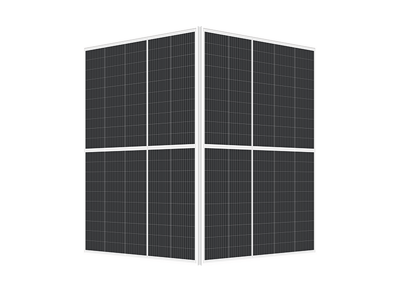

G12 100cells 485-505w solar panel

G12 100cells 485-505w solar panel

G12 100cells 485-505w solar panelPDF DOWNLOAD
G12 100cells 485-505w solar panel

Dimension 2186×1096×35mm
Weight 23.5kg
No. of cells 100
Rated Maximum Power 505w
Maximum Efficiency 21.08%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible
G12 120cells 585-605w Solar Panel

G12 120cells 585-605w Solar Panel

G12 120cells 585-605w Solar PanelPDF DOWNLOAD
G12 120cells 585-605w Solar Panel

The product strengthens component density, greatly improves component power and efficiency, with an output power of 585-605w, and has core advantages such as high power, high efficiency, high power generation, cost-saving, good system adaptation, high reliability, and environmental protection.

Dimension 2172×1303×35mm
Weight 30.5kg
No. of cells 120
Rated Maximum Power 605w
Maximum Efficiency 21.38%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible

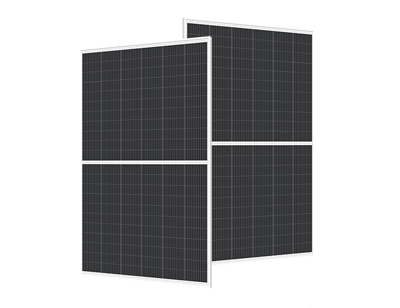

G12 132cells 650-670w solar panel

G12 132cells 650-670w solar panel

G12 132cells 650-670w solar panelPDF DOWNLOAD
G12 132cells 650-670w solar panel

Dimension 2384×1303×35mm
Weight 33.5kg
No. of cells 132
Rated Maximum Power 670w
Maximum Efficiency 21.57%
Junction Box IP≥68, TÜV&UL
Maximum System Voltage DC1500
Operating Temperature -40℃ to 85℃
Cable&Connector 4mm2, EVO2 / EVO2 Compatible
